PALL颇尔0.2um囊式过滤器KA2EKVP1G
PES过滤膜，0.2um孔径，直径（包括阀门）94mm，长度157mm， 750cm² (0.8 ft²)有效过滤面积。
Materials of Construction
| Filter Membrane | Hydrophilic PES |
| Support/Drainage | Polypropylene |
| End Cap, Core and Cage | Polypropylene |
| Capsule Shell | Polypropylene |
| Sealing Technology | Thermal bonding without adhesives |
Operating Parameters(1)
| Maximum Temperature | 40 °C |
| Maximum Operating Pressure |
5.2 bar (75 psi) at 20 °C |
| Maximum Differential Pressure | 4.0 bar (58 psi) at 40 °C |
(1) In compatible fluids which do not soften, swell or adversely affect the filter or its materials of construction
Sterilization(2)
| Autoclave | 5 x 60 minutes at 125 °C, slow exhaust |
| Gamma Irradiation | Maximum of 50 kGy |
(2) Pre-sterilized Kleenpak capsules must not be re-sterilized
Kleenpak capsules must not be sterilized in-situ by passing steam under pressure
Water wet Supor EKV capsules prior to steaming to retain full water wettability for integrity testing
Typical Extractables in Water at 20 °C
| KA1 / KA2 | < 5 mg per capsule |
| KA3 | < 10 mg per capsule |
Nominal Dimensions
| KA1 | KA2 | KA3 | |
| Diameter incl. Valves | 94 mm (3.7 in.) | 94 mm (3.7 in.) | 105 mm (4.1 in.) |
| Length – Code 1 | 117 mm (4.6 in.) | 157 mm (6.2 in.) | 174 mm (6.8 in.) |
| Length – Code 6 | 157 mm (6.2 in.) | 197 mm (7.7 in.) | 210 mm (8.3 in.) |
| Length – Code 16 | 137 mm (5.4 in.) | 177 mm (7.0 in.) | 192 mm (7.6 in.) |
Nominal Effective Filter Area (EFA)
| KA1 | 375 cm² (0.4 ft²) |
| KA2 | 750 cm² (0.8 ft²) |
| KA3 | 1500 cm² (1.6 ft²) |

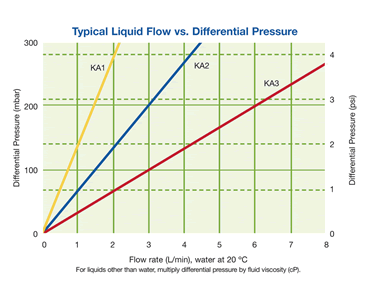

Flow Characteristics
